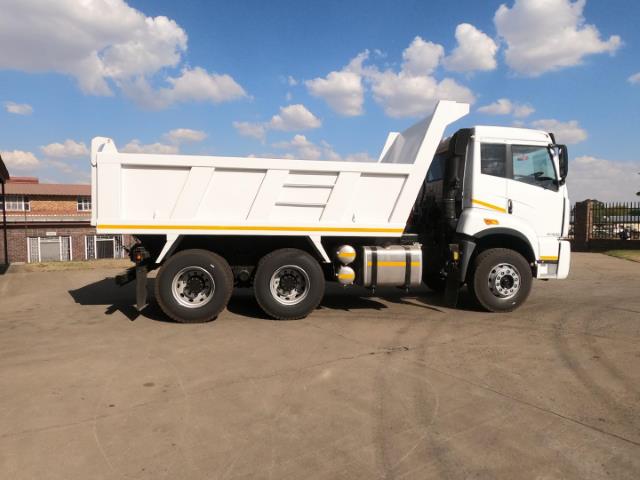

10 Cubic Tipper Truck

Internal length – to suit chassis
Internal width – 2290mm
Internal height – To suit chassis and volume requirement.
FLOOR:4,5mm mild steel plate and 76 x 38mm rolled channel cross members.
SIDES: 3mm mild steel fixed sides with vertical stiffeners and heavy duty rub rails.
TAILGATE: 4,5mm mild steel reinforced top or bottom hinged tailgate controlled by lever at front of body or automatic control.
HOIST: Hyva 24 ton capacity direct trust underbody hoist model UCB165-5-2500 hydraulic cylinder giving a 45 degree tipping angle, tipping speed +/- 30 seconds.
PUMP: Gear type pump close coupled P.T.O. with a displacement of 85 cm 3/REV. with a pressure set at 120 bar. P.T.O. and controls to be supplied by chassis supplier.
HOIST CONTROLS: Hydraulic control valves for up, down and hold. All controlled from cab.
SAFETY PROP: Robust support for body in semi raised position.
MOUNTING: Body mounted in accordance with chassis manufacturer’s requirements.
FINISH: Metal descaled, phosphate coated and primed with zinc chromate. Body will be finished painted in two coats of good quality industrial enamel to required thickness and in the colour specified.
